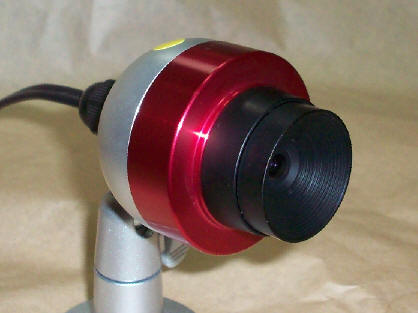

US-5150IR

  NEAR IR CCD CAMERA





Model Name

US-5150IR

Signal format

EIA

Image Sensor

1/3inch  CCD Sensor

Number of Pixel

270K

Scanning System

2 :1 Interlace

Synchronization

Internal

Horizontal Resolution

420 TVL

Video Out Level

1.0Vp-p, 75 ohm

Burst level

0.286 Vp-p

S/N ratio

48dB or better

Minimum Illumination

300nm~750nm

200000 Lux

850nm

5 Lux

940nm

50 Lux

Gamma Correction

0.45

AGC

+ 18 dB

ALC

Electrical IRIS

Electrical Shutter

AUTO(1/60~1/100000 sec.)

Lens Options

4mm,6mm,8mm12mm,16mm

Power Supply Voltage DC

DC 12V

Power Supply Current

Max 100mA (at DC+12V)

Storage temperature/humidity

-20°C to +55°C / Max. 90%(No condensation)

Operating temperature/humidity

-10°C to +50°C / Max.80%(No condensation)
