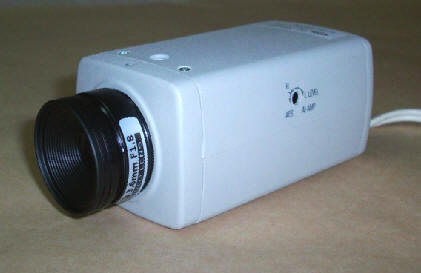

TC-3300IR

  NEAR IR CCD CAMERA







Model Name

TC-3300IR

Signal format

EIA

Image Sensor

1/3inch  CCD Sensor

Number of Pixel

270K

Scanning System

2 :1 Interlace

Synchronization

Internal

Horizontal Resolution

380 TVL

Video Out Level

1.0Vp-p, 75 ohm

Burst level

0.286 Vp-p

S/N ratio

48dB or better

Minimum Illumination

300nm~750nm

200000 Lux

850nm

15 Lux

940nm

25 Lux

Gamma Correction

0.45

AGC

+ 9 dB

ALC

Electrical IRIS

Electrical Shutter

1/60 sec.

Lens Options

4mm,6mm,8mm12mm,16mm

Power Supply Voltage DC

DC 12V

Power Supply Current

Max 110mA (at DC+12V)

Storage temperature/humidity

-20°C to +55°C / Max. 90%(No condensation)

Operating temperature/humidity

-10°C to +50°C / Max.80%(No condensation)
