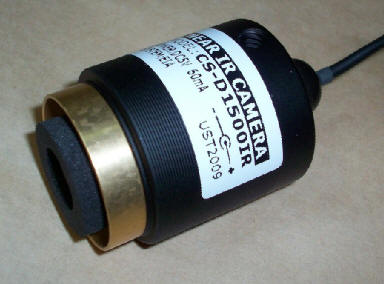

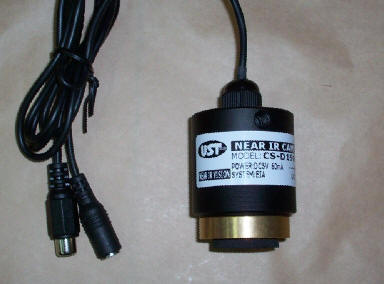

CS-D1500IR

  NEAR IR CMOS CAMERA





Model Name

CS-D1500IR

Signal format

EIA

Image Sensor

1/4inch  CMOS Sensor

Number of Pixel

300K

Scanning System

2 :1 Interlace

Synchronization

Internal

Horizontal Resolution

350 TVL

Video Out Level

1.0Vp-p, 75 ohm

S/N ratio

45dB or better

Minimum Illumination

300nm~750nm

200000 Lux

850nm

10 Lux

940nm

50 Lux

Gamma Correction

0.45

AGC

+ 12 dB

ALC

Electrical IRIS

Electrical Shutter

1/60~1/100000 sec.

Lens Options

4mm,6mm,8mm12mm,16mm

Power Supply Voltage DC

DC 5V

Power Supply Current

Max 60mA

Storage temperature/humidity

-20°C to +55°C / Max. 90%(No condensation)

Operating temperature/humidity

-10°C to +45°C / Max.80%(No condensation)
