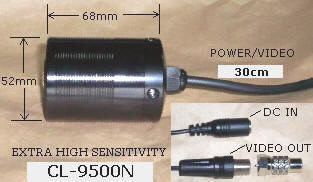

CL-9500N |
|
超高感度 微光即有全彩畫面 |
|
非慢快門 影像不拖影 |
|
防水 水下5米 |
|
|
 |
 |
 |
|
CL-9500N |
|
超高感度 微光即有全彩畫面 |
|
非慢快門 影像不拖影 |
|
防水 水下5米 |
|
|
|
|
|
| Model Name |
CL-9500N |
| Signal format |
NTSC |
| Image Sensor |
1/3inch CCD Sensor |
| Number of Pixel |
290K PIXELS |
| Scanning System |
2 :1 Interlace |
| Synchronization |
Internal |
| Horizontal Resolution |
420 TV Lines |
| Video Out Level |
1.0Vp-p, 75 ohm (Video 0.714Vp-p, Sync. 0.286Vp-p) |
| Burst level |
0.286 Vp-p |
| S/N ratio |
56dB or better |
| Minimum Illumination |
0.0002 lux (F 1:1.2) |
| Back Light Compensation |
Available |
| Gamma Correction |
0.45 |
| AGC |
38 dB |
| ALC |
Electrical IRIS |
| Electrical Shutter |
1/60 to 1/120,000 sec. |
| Power Supply Voltage DC |
DC 10~15V |
| Power Supply Current |
Max 80mA (at DC+12V) |
| Storage temperature/humidity |
-20°C to +70°C / Max. 90%（No condensation） |
| Operating temperature/humidity |
-10°C to +60°C / Max.80%（No condensation） |
| Dimensions |
68(L) x 52(H) mm |
| Weight |
120g |
